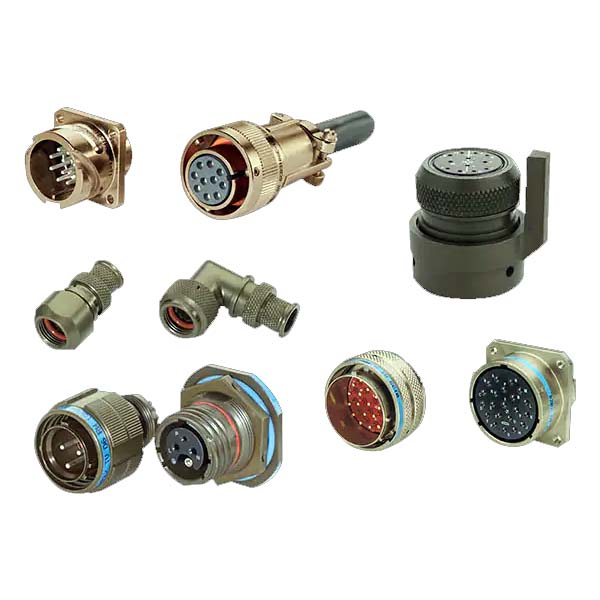

Metal and plastic Push-Pull Circular Connectors

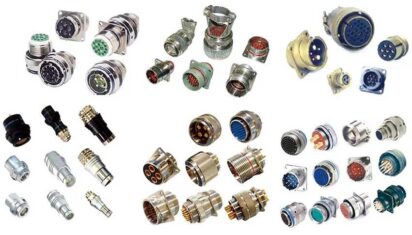

Circular connectors are mainly used in the industrial world, 가전제품 (M5, M8, M12, M16 circular connectors/panel mount, waterproof cables). It is a cylindrical multi-pin electronic connector with a round plug surface, which is used for inter-plug connection between devices. Circular connectors contain contacts for data and power transfer and typically include low frequency ring connectors, radio frequency coaxial connectors and audio connectors.
The cylindrical structure of circular connectors is inherently strong, providing greater strength than any other shape. The shell is made of zinc alloy or PBT engineering plastic material, and the connection adopts 1/4 quick bayonet connection, plug-in connection, latch connection, quick-plug connection, thread connection, push-pull connection, 등.

The main application of circular connector
Where multiple connectors are used to interconnect components and cables, and cables and cables, circular connectors are the first choice.
Widely used in sensors, actuators, encoders, 모터, industrial grating light curtains, factory automation process control, equipment batteries, semiconductors, packaging label printing equipment, fieldbus, industrial equipment, marine electronics NMEA 2000, rail transit, EMS Circuit board components, LED outdoor displays, outdoor LED lighting, 등.

why is it round
A series of IEC specifications define circular connectors. This is IEC61076, and IEC61076 defines various connectors. Regarding circular connectors, there are mainly circular connectors of various specifications such as M5, M8, M12, M16, 등., and their external dimensions, pin distribution, mechanical and electrical characteristics, 등. are specified.
예를 들어, the A code of the M12 connector is used to transmit direct current, standard 24VDC and standard sensor signal interface, and the B code is used for DC signals, such as early Profibus, Interbus and other field buses. C code is used for alternating current, standard 24/110/230VAC, mostly used in the United States. D code is mostly used for Ethernet communication such as Profinet, Ethernet, CC-LinkIE, 등. X encoding is used for Gigebit Ethernet and more.

Metal and plastic Circular Connector

M5 circular connector
The M5 circular connector is small in size and can realize the electrical and signal connection between the control system and various sensors. M5 circular connectors are used in pressure sensors, position sensors, acceleration sensors, temperature and humidity sensors, 등.

M5 circular connector pin distribution:

M5 circular connector pin distribution

Rated parameters of M5 circular connector:

Rated parameters of M5 circular connector

product features:
M5 connector to PCB board, male seat, front lock, straight, through hole, 4 pins, waterproof;
Thread locking mechanism, 5 mm metric size, one of the smallest circular connectors;
Compact and convenient, less installation space;
고품질 원래 공장 출하, 30 days worry-free return and exchange;
Wholesale from brand OEM original factory, 동일한 품질, 더욱 합리적인 가격.

application:
micro sensor
industrial camera
electric car
Packaging, Labeling and Logistics
Factory Automation and Fieldbus Modules

전기적 성능:
Rated current: 1에이
접촉저항: ≤ 5 mΩ
Insulation resistance: ≥100 MΩ
Rated voltage: 60v
Executive standard: IEC61076-2-104

기계적 거동:
Coupling method: screw connection

환경 성과
주변 온도: -40°C ~ + 80°C
IP rating: IP67

Material:
Center Needle: Brass/Gold
Nut/Screw: Brass / Nickel
Outer Membrane Material:: TPU
Sealing: poxy resin

M8 circular connector
The common M8 connector has a thread specification of M8×1.0. 그러므로, unlike the many specifications of M12, M8 only has 3-4 codes and five digits. Because the M8 pin pitch is too small, it is not suitable for high voltage applications, only suitable for occasions below 50V AC or 60V DC.
M8 circular connector coding pin distribution:

M8 circular connector pin distribution
