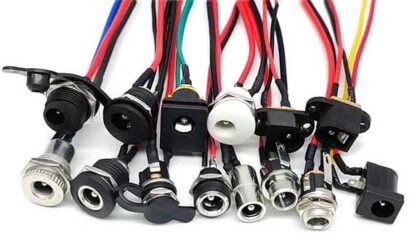

DC 콘센트 란 무엇입니까?? DC 소켓 커넥터 및 DC 케이블의 맞춤형 처리.
DC 소켓은 컴퓨터 모니터의 특수 전원 공급 장치와 일치하는 소켓입니다.. 수평 소켓으로 구성되어 있습니다., 수직 소켓, 절연 베이스, 포크 모양의 접촉 파편, 그리고 방향키홈. 두 개의 포크 모양 접촉 파편이 베이스 중앙에 위치합니다., 수직과 수평으로 배열되어 있으며 서로 연결되어 있지 않습니다.. One end of the fork-shaped contact shrapnel is a wiring port, which is exposed on the top surface of the cylinder of the base, and is used for connecting the input power cord or cable. The other end of the fork-shaped contact shrapnel is composed of two elastic arms interconnected by the base body. It is set in the socket of the insulating base in the direction of DC plug insertion, and it is used for the computer monitor to make it work normally.

DC socket package type
The DC socket is divided into two packages: SMT patch package and DIP plug-in package.

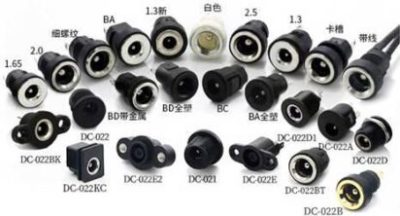

DC socket model specification

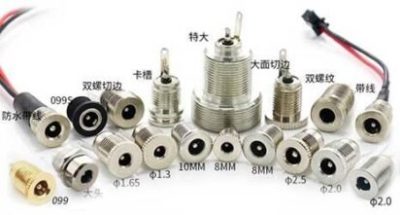

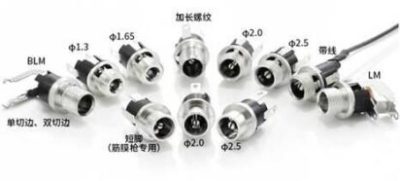

Center pin of DC power socket: 0.5mm/0.7mm/1.0mm/1.1mm/1.3mm/1.65mm/2.0mm/2.5mm/3.0mm

With the progress of society, the market demand for DC sockets is increasing, so how to connect the DC socket pins? The wiring methods of DC socket pins are different for different specifications of DC sockets. Pay attention to the protection of DC socket pins when using DC sockets. The packaging of DC socket pins must be scientific and reasonable to avoid deformation, loosening, tilting, scratching, poor electroplating, oxidation and rust of DC socket pins, which will affect their normal use.

When using DC power sockets, it should also be noted that due to the large demand for electricity in winter, many people like to use many high-power electrical appliances in one socket. Although this is very convenient, the safety is very low. 일반적으로 말하면, the power of high-power electrical appliances used at the same time cannot exceed 3000 watts. When choosing insurance baffles, you also need to choose those with high safety factors, such as copper sheets, aluminum sheets, 등. When using it, you must also pay attention to distinguish the “position of the neutral wire and the live wire” and try to keep it higher from the ground, because some floors are relatively humid, which can easily cause a short circuit in the socket.

DC socket application
1. Audio-visual products: MP3, MP4, DVD. Audio;
2. Digital products: digital cameras, digital video cameras, 등.;
3. Remote control: remote control for vehicles, rolling doors, and home anti-theft products;
4. Communication products: mobile phones, car phones, telephones, building equipment, PDA, 등.;
5.
Household appliances: TV sets, microwave ovens, rice cookers, electric
fans, electronic body scales, electronic fat scales, electronic kitchen
scales, 등.;
6. Security products: video intercom, monitor, 등.;
7. Toys: electronic toys, 등.;
8. Computer products: 카메라, recording pens, 등.;
9. Fitness equipment: treadmill, massage chair, 등.;
10. Medical equipment: blood pressure monitor, thermometer, hospital call system, 등.

DC socket specification
접촉저항: Contact Resistance ≤0.03mmΩ
Rated Load: Rated Load 30V DC 0.5A
Insulation resistance: Insulation Resistance ≥100MΩ
삽입력: Insertion and Extraction Force 3N~30N
Withstanding voltage: Withstand Voltage 500V, AC/min Electrical life: Life 5000 times
Temperature range: Temperature -40~+70℃
