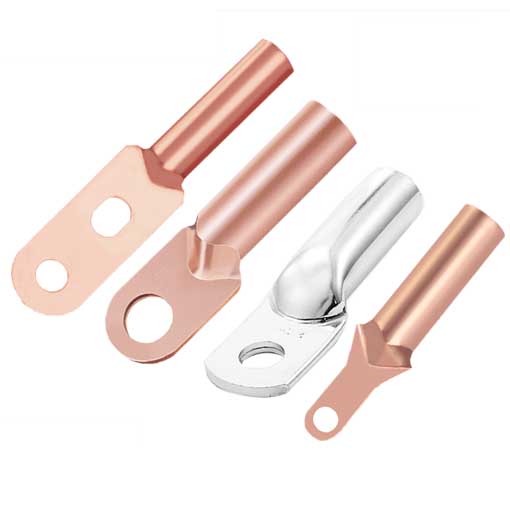

구리 튜브 러그 및 링 터미널 커넥터

Copper Tube Terminals for Crimp Cables

The concept of copper tube ring terminal connectors:
Alias: cold-pressed electrical terminal, copper tube terminal, electrical terminal, copper nose, copper wire ear.
Material: Made of the best conductive material (red copper) + (tin-plated).
Standard: Produced according to international standards.
Copper tube terminals refer to terminals of copper tubes commonly used in electrical appliances and electrical equipment. 그들은 모두 좋은 전열 특성을 가지고 있으며 내부식성도 있습니다.. 동관과 전기제품을 연결하는데 없어서는 안될 핵심 커넥터 부품입니다.. 고전압 전류를 장비에 합리적으로 유도하는 효과적인 케이블 커넥터 단자입니다., 연결하는 데에도 사용할 수 있습니다., 설치하다, 커플, 격리 및 기타 전기 제품 및 장비 커넥터.

YAXUM-copper tube terminal products have passed UL, CSA and ROHS environmental certification. Good performance, beautiful appearance and strong. Features High elasticity, 고온 저항, high pressure resistance, impact resistance, high safety factor, easy installation, high electrical conductivity, good insulation, 등.

Copper Tube Terminals for Crimp Cables

ITEM.	Dimensions （mm）
	ΦE	ΦD	Φd	W	B	L
8#10	5.1	7.1	4.8	11.8	13	33.3
8*1/4	6.8
8*5/16	8.3
8*3/8	10.4			14.5
8*1/2	13.1			17
6#10	5.1	8.1	5.9	11.8	15	37.3
6*1/4	6.8			13.7
6*5/16	8.3			13.7
6*3/8	10.4			13.7
6*1/2	13.1			17	14
4*1/4	6.8	9.5	7.3	13.8	15.5	38.9
4*5/16	8.3			13.8
4*3/8	10.4			14.5
4*1/2	13.1			17	15
2*1/4	6.8	11.1	8.5	16.5	16	41.1
2*5/16	8.3
2*3/8	10.4
2*1/2	13.1			17	15.3
1*1/4	6.8	11.7	9.1	16.4	16	43.6
1*5/16	8.3
1*3/8	10.4			17.1
1*1/2	13.1			19.1
1/0*1/4	6.8	13	10.4	18.4	19	46.8
1/0*5/16	8.3
1/0*3/8	10.4
1/0*1/2	13.1			21
2/0*1/4	6.8	14.2	11.7	21	22	52.4
2/0*5/16	8.3
2/0*3/8	10.4
2/0*1/2	13.1				21
3/0*5/16	8.3	15.7	13	23.1	22.5	55.9
3/0*3/8	10.4
3/0*1/2	13.1
4/0*5/16	8.3	17.2	14.2	15.8	24	60.5
4/0*3/8	10.4
4/0*1/2	13.1

International Standard for Copper Tube Terminals
Internationally, the quality requirements for copper tube terminals are very strict, and there are detailed and strict standards from the input of raw materials to the effect of use. 예를 들어, the material quality of raw materials for copper tube terminals should comply with CJ/T235-2002 “Fused Welded Tubes for Copper Tubes”. The compressive strength, tensile strength, tensile strength and thermal deformation temperature of copper pipe terminals must comply with the provisions of GB/T1804-2000 “Copper and Copper Alloy Solder for Fused Welded Pipes”. In addition, the external dimensions and assembly technical requirements of copper tube terminals have also revised and improved the relevant provisions of GB/T3020-2000 “Copper and Copper Alloy Fittings for Fused Welded Pipes”. The coating requirements are also implemented in the coating quality effectiveness evaluation index. 동시에, the corrosion resistance evaluation standard was improved into the standard of GB/T 3190-2008 “Evaluation of Corrosion Resistance of Power Cables and Terminals”.

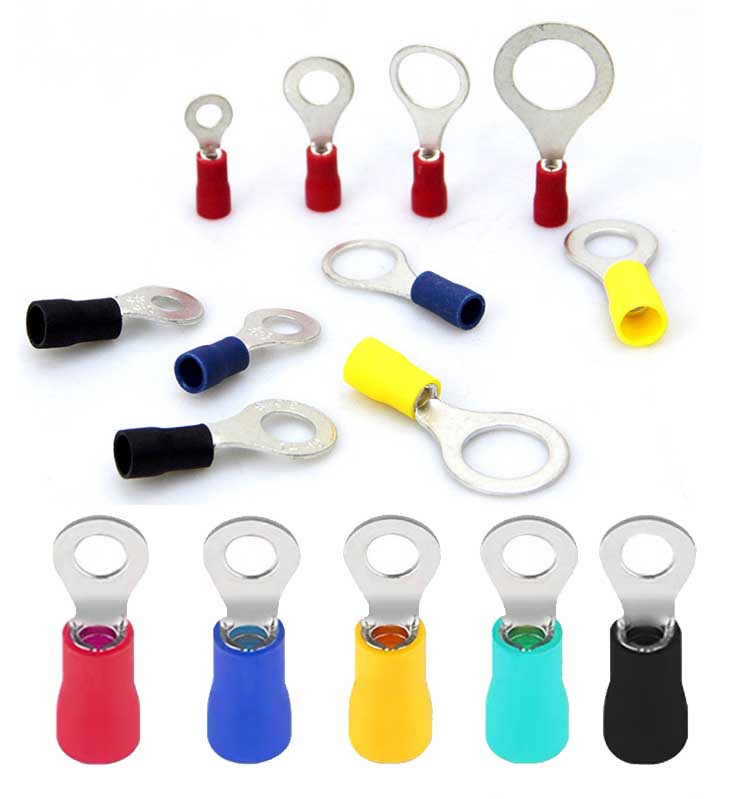

PVC insulated cold pressing terminal

Advantages of Copper Tube Terminals
First of all, copper tube terminals are small in size, light in weight, not easy to corrode, and have excellent reusability. Secondly, the structural design of the copper tube terminal is reasonable, easy to install, compact and safe
reliable. 동시에, its price is relatively low, which can save budget no matter it is used or produced. Finally, it works efficiently and provides long-lasting, reliable stability.
In short, the copper tube terminal is a connector with excellent performance and easy use. Because of its excellent characteristics, it is widely used in the connection and installation of electrical appliances and electrical equipment. There are also international regulations on copper tube terminals, with detailed and strict requirements on materials, quality, dimensions and corrosion resistance.

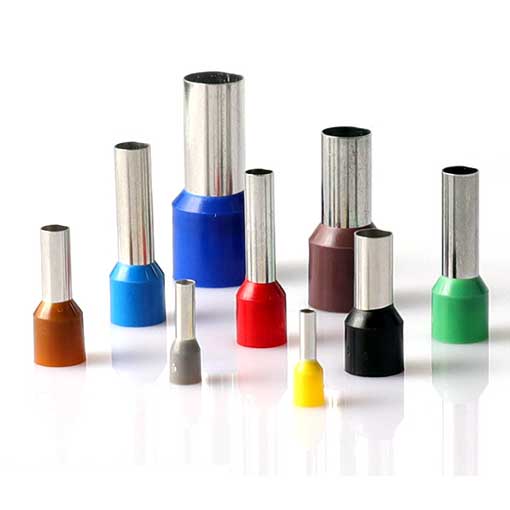

PVC insulated cold pressing terminal

High-voltage copper tube terminals for crimping wires, suitable for crimping cables below 33KV

ITEM.	Dimensions （mm）
ITEM.	ΦE	ΦD	Φd	W	B	L
DIN6-5	5.3	5.5	3.8	8.5	10	30.5
DIN6-6	6.4			8.5		31.5
DIN6-8	8.4			13		34
DIN10-5	5.3	6	4.5	19		34
DIN10-6	6.4			19		34.5
DIN10-8	8.4			13		37
DIN10-10	10.5			15		39
DIN16-6	6.4	8.5	5.5	13	20	43.5
DIN16-8	8.4			13		46
DIN16-10	10.5			17		48
DIN16-12	13			18		49
DIN25-6	6.4	10	7	14		45.5
DIN25-8	8.4			16		48
DIN25-10	10.5			17		50
DIN25-12	13			19		51
DIN35-6	6.4	12.5	8.2	17		49.5
DIN35-8	8.4			17		52
DIN35-10	10.5			19		54
DIN35-12	13			21		55
DIN35-14	15			21		56.5
DIN50-8	8.4	16.5	11.5	20	28	62
DIN50-10	10.5			22		64
DIN50-12	13			24		65
DIN50-14	15			24		66.5
DIN50-16	17			28		68
DIN70-8	8.4	19	13.5	24		65
DIN70-10	10.5					67
DIN70-12	13					68
DIN70-14	15					69.5
DIN70-16	17			30		71
DIN95-8	8.4	19	13.5	28	35	77
DIN95-10	10.5					77
DIN95-12	13					78
DIN95-14	15					79.5
DIN95-16	17			32		81
DIN120-10	10.5	21	15.5	32		85
DIN120-12	13					86
DIN120-14	15					88
DIN120-16	17					89
DIN120-20	21			38		91
DIN150-10	10.5	23.5	17	34		93
DIN150-12	13					94
DIN150-14	15					97
DIN150-16	17					97
DIN150-20	21			40		99
DIN185-10	10.5	25.5	19	37	40	97
DIN185-12	13					98
DIN185-14	15					101
DIN185-16	17					101
DIN185-20	21			40		103
DIN240-12	13	29	21.5	42		108
DIN240-14	15					111
DIN240-16	17					111
DIN240-20	21			45		113
DIN300-12	13	32	24.5	46	50	119
DIN300-14	15					119
DIN300-16	17					119
DIN300-20	21					122
DIN400-14	15	38.5	27.5	55	70	140
DIN400-16	17					140
DIN400-20	21					140
DIN500-16	17	42	31	60		150
DIN500-20	21	42	31	60		150
DIN625-16	17	44	34.5	64	80	160
DIN625-20	21	44	34.5	64	80	160
DIN800-16	17	52	40	75	100	195
DIN800-20	21	52	40	75		195
DIN1000-16	17	58	44	85		195
DIN1000-20	21	58	44	85		195
