UL 2651 Verseiltes flexibles Flachkabel 28AWG 10 12 14 16

Maßgeschneidertes 28AWG UL2651-Flachkabel für Beatmungsgeräte gemäß Ihren Zeichnungen oder Musteranforderungen.
Verbinder: 3Marke M;
Draht: UL2651 flat cable 28AWG;
Produktzertifizierung: UL, ISO10993, IPC620, ISO13485, ERREICHEN, ROHS2.0;
This customized wiring harness is used by customers in ventilator equipment. Used for connection and communication between the screen and the motherboard, the finished wire harness has passed a total of 15 performance-related test items in mechanical, physical, electrical and other aspects.
Produktzertifizierung: UL, ISO10993, IPC620, ISO13485, ERREICHEN, ROHS2.0.
Firmenauszeichnungen und Qualifikationen: National high-tech enterprise, UL certificate, IPC620C, ISO9001, ISO14000, ISO13485, IATF16949, usw.

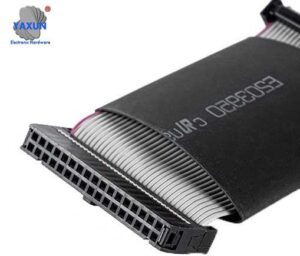

28AWG-Flachsteckerkabel

UL2651 flat connector cable

Flachkabel für Beatmungsgeräte-Nutzungsdaten

Introduction and application of UL2651 cable
1. Rated temperature: 105°C;
2. Nennspannung: 300V;
3. Conductor: single or stranded 36~14AWG tinned or bare copper;
4. Resistance level: VW-1 and CSAFT1, FT2;
5. Insulation: polyvinyl chloride (PVC);
6. Scope of application: used in digital cameras, instruments, chargers, audio, medizinische Ausrüstung, toys, household appliances and circuit boards, usw.
7. Reference standards: UL758 UL1581 UL2556;
8. UL2651 cable has the characteristics of flexibility, acid resistance, oil resistance, moisture resistance, and mildew resistance.
9. The insulation thickness of UL2651 cable is: 0.26MM and the spacing is: 1.0MM;
10. Environmental protection requirements: complies with ROHS2.0 certification standards;
11. UL2651 cable packaging: 610 meters/roll;
