Kaufen Sie die Verkabelung von Drucksensoranschlüssen online

Kundenspezifischer Drucksensor-Kabelbaum basierend auf Ihren Zeichnungen oder Mustern.
Verbinder: Tyco (DER)
Anwendungsgebiete: Industrielle Sensorverbindungsleitungen;
Name: Pressure sensor wiring harness;
Verarbeitungstechnologie: Schweißen, injection molding;
Anpassung hin oder her: Passen Sie die Kabelbaumlänge individuell an, Spezifikationen, Farben, usw. nach Kundenwunsch;
Wire harness exterior: heat shrink tubing;
Draht: C165-T200 TYPE 2019;
Spannung standhalten: DC300V, 10 Millisekunden;
Verbinder: Tyco (DER);
Einschaltwiderstand: ≤3 ohms;
Wasserdichter Grad: IP67;
Isolationswiderstand: ≥5 megaohms;
Ein- und Aussteckzyklus: ≥5000 Mal;
Salzsprühtest: ≥48 Stunden;
Anwendungsgebiete: Industrielle Sensorverbindungsleitungen;
Produktleistung: The manufacturer selects high-quality materials. The product is highly flexible, acid and alkali resistant, Öl resistent, feuchtigkeitsbeständig, schimmelfest, schwer entflammbar, abriebfeste, korrosionsbeständig, Antioxidans, wasserdicht, staubdicht, und UV-beständig.
Produktzertifizierung: IPC620, IP67, ERREICHEN, ROHS2.0, MASDS.
Firmenauszeichnungen und Qualifikationen: Nationales High-Tech-Unternehmen, UL, IPC620, ISO9001, ISO14000, ISO13485, IATF16949, usw.
The pressure sensor wire harness is an important transmission channel for interconnecting the pressure sensor and signal acquisition equipment, and is also one of the important accessories of the pressure sensor. As an important component connecting the pressure sensor and collector, the wire harness must not only meet the stability and reliability requirements of signal transmission, but also be able to adapt to use under different environmental conditions. This article will describe the types of pressure sensor harnesses and their applications.

2 – Pressure sensor harness type
1.Wire harness interface type
Pressure sensor wiring harnesses are mainly divided into two types according to their interface types: plug type and terminal thread type. The plug-type wiring harness is suitable for occasions with frequent installation and disassembly, while the terminal screw-type is suitable for occasions where the butt connection is relatively fixed. It should be noted that when selecting the wiring harness interface model, it needs to correspond to the pressure sensor, otherwise it will cause unstable connection or failure to connect.
2.Cable material
Cable material is one of the key factors that determine the performance of the wire harness. Derzeit, common cable materials mainly include PVC, PUR, TPU, PTFE, usw. Darunter, PVC is the material used in ordinary cables and is suitable for general environments, while PUR, TPU, and PTFE all have good corrosion resistance and high temperature resistance. daher, in harsh environments, it is recommended to choose cables made of PUR, TPU or PTFE.

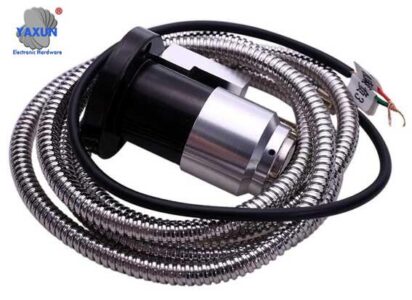

Kabelbaum des Werkzeugdrucksensors

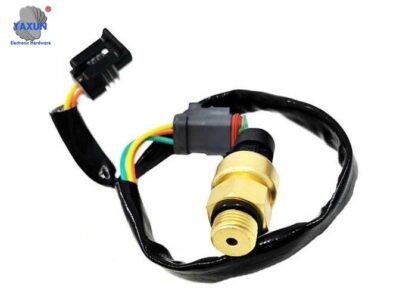

Kabelbaum des Drucksensors

3 – Pressure sensor wiring harness application scenarios
Pressure sensor wire harnesses are widely used in various scenarios that require pressure measurement and control, such as automobile manufacturing, Luft- und Raumfahrt, metallurgy and smelting. Taking cars as an example, since cars are in a complex external environment and there are various mechanical and electronic devices inside the car, high-quality wiring harnesses need to be selected. Zusätzlich, pressure sensor wire harnesses can also be used in fields such as medical equipment and industrial automation.

IV – Summary
This article mainly introduces the types, application scenarios and selection points of pressure sensor wire harnesses. It can be seen that selecting the appropriate pressure sensor wiring harness is the key to ensuring stable and reliable pressure sensor signal transmission. When selecting, factors such as cable interface and cable material need to be determined based on actual conditions. I hope this article can provide some reference value for the selection of pressure sensor wiring harness.
Draht: C165-T200 TYPE 2019
